Designed and assembled a mechanical gripper in SolidWorks using 20+ parts to simulate motion

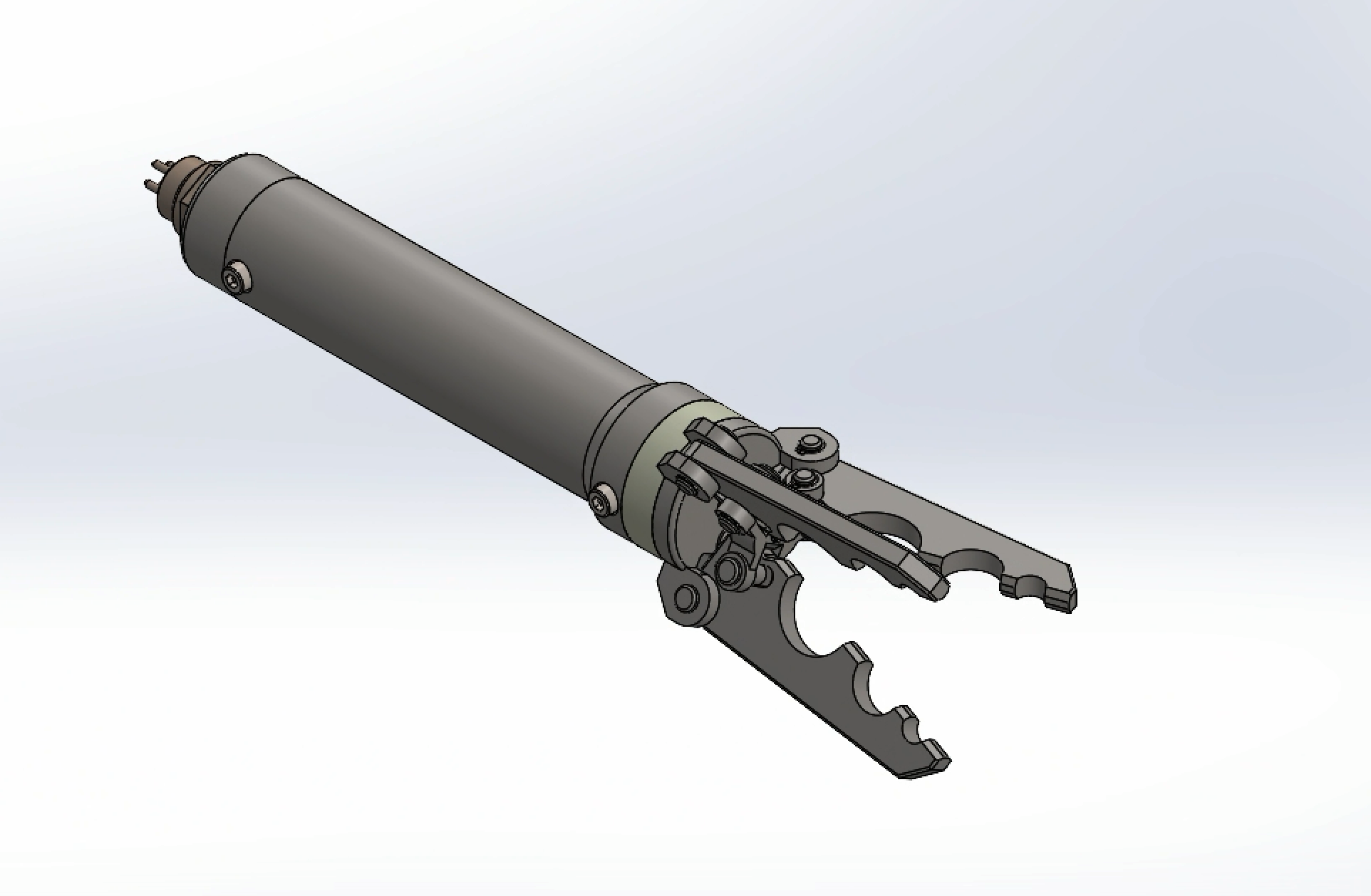

Final Assembly

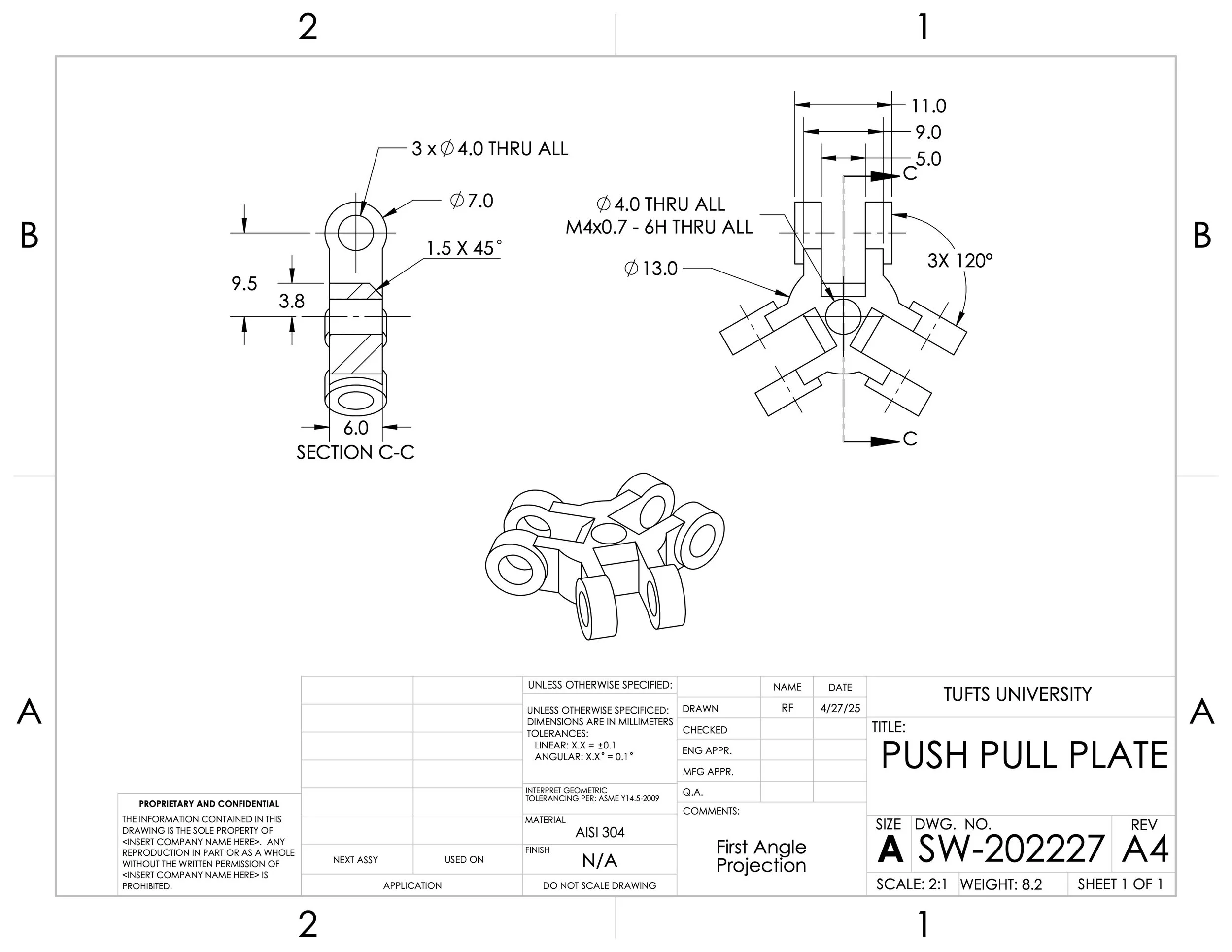

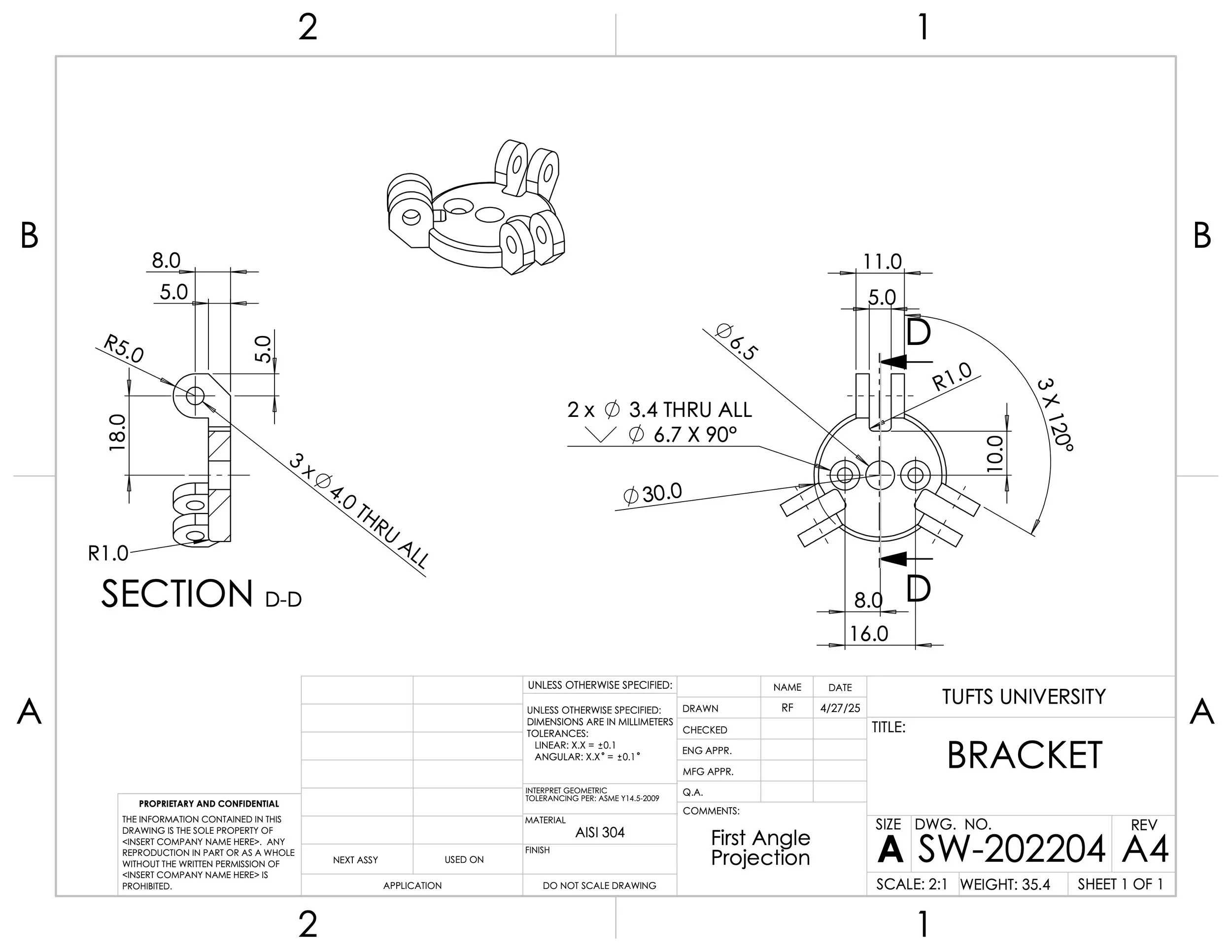

Part Drawings

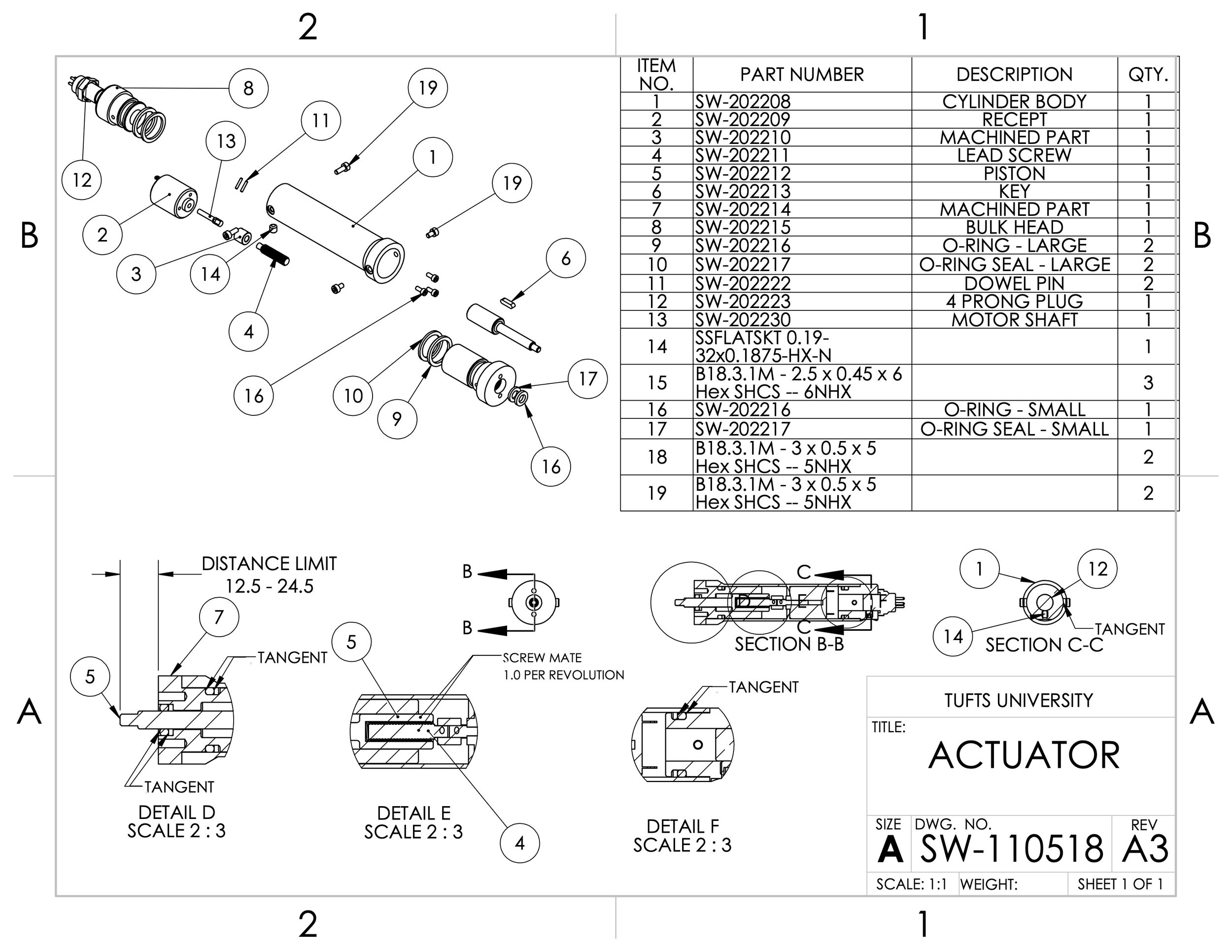

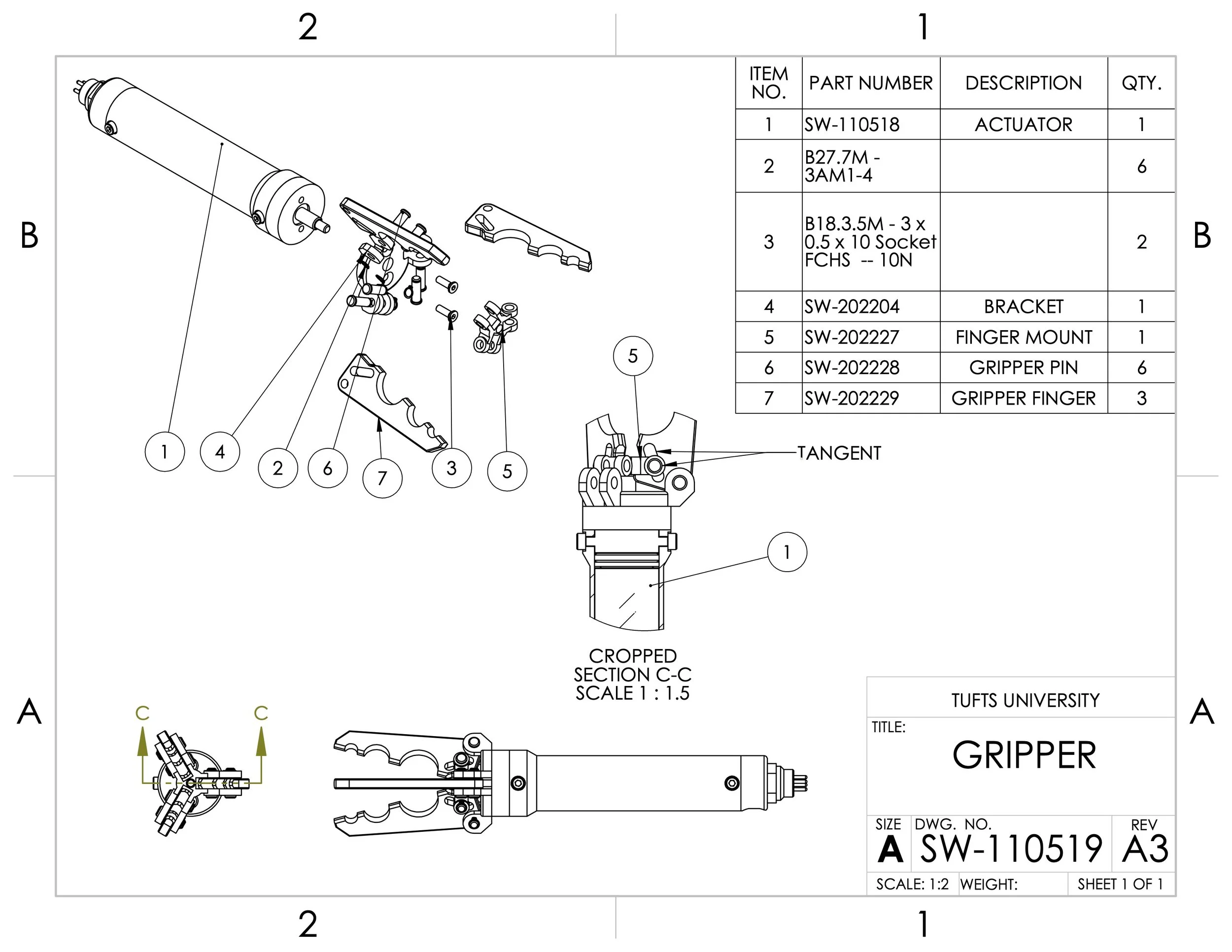

Assembly Drawings

Simulations

Outcome

  • Modeled over 20 complex parts

  • Mated all parts together into a functional assembly

  • Made detailed part and assembly drawings including BOM

  • Created simulations that accurately display the gripper function
